Compact chassis leaves more room in your rack
Rack space counts, especially when you're touring the country with tons of equipment. The QSC RMX5050a packs a ton of power into a chassis that's less than 16" deep, which gives you more room to make connections and manage your rack equipment.
Quality connections for reliable performance
The QSC RMX5050a power amplifier has both XLR and 1/4" balanced inputs, plus binding post and speakON outputs for maximum convenience. Whether you're playing at the local club or managing a large-scale stage production, it's easy to integrate the QSC RMX5050a into virtually any system that requires powerful, transparent audio performance.
Optimize your sound with a switchable low-cut filter
There's a low-cut filter on the QSC RMX5050a, to help protect your speakers and also help you maintain more headroom. Set it at 30Hz if you're using the RMX5050a to power a subwoofer, giving you powerful low-frequency response while filtering out sub-sonics that eat up your headroom. Set it to 50Hz if you're powering main speakers, giving you even more headroom for clear, dynamic, full-range sound while maintaining a powerful low-end presence.
QSC RMX5050a Power Amplifier Features:
- Stereo or bridged-mono power amplifier
- Compact chassis is less than 16" deep, leaving you more space in the back of your rack

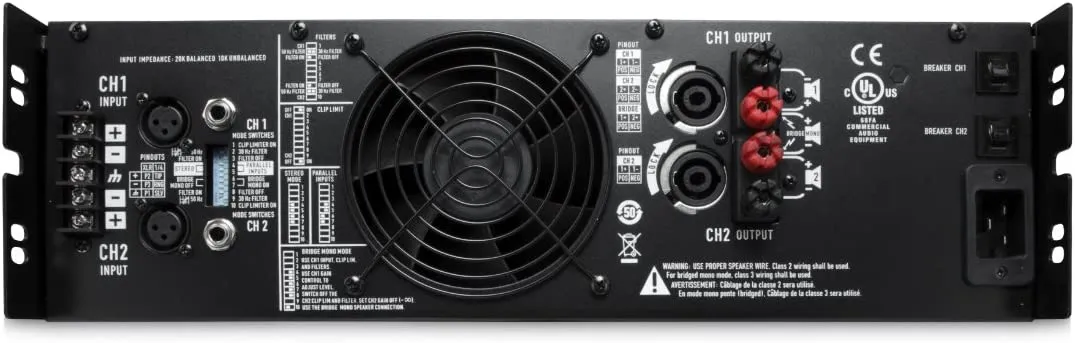

- Flexible I/O with XLR and 1/4" balanced inputs, plus binding posts and speakON outputs

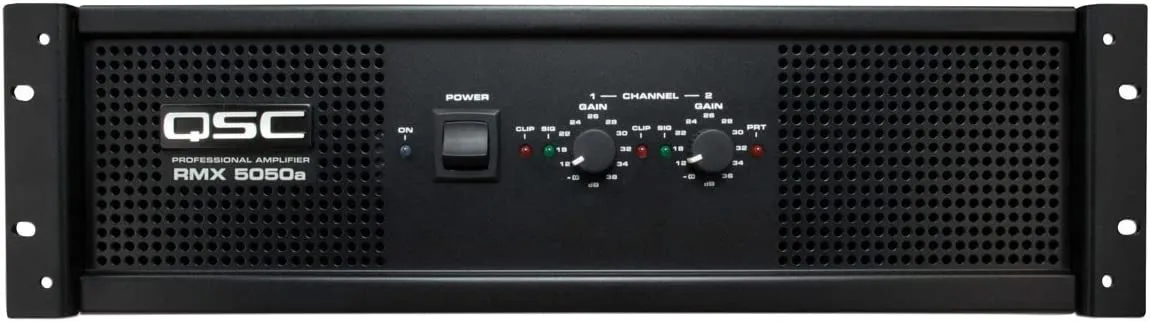

- Front-mounted gain controls give you fast, easy access to your signal levels
- Switchable 30Hz/50Hz low-cut filter lets you fine-tune your system for maximum headroom
- Signal and Clip LED indicators let you monitor performance at a glance
- Independent DC and thermal overload protection on each channel automatically protects amplifier and speakers
- Defeatable clipping limiter protects speakers against signal spikes
Tech Specs
- Number of Channels:2
- Power Class:3-tier Class H
- Watts/Side @ 8 ohms:1050W
- Watts/Side @ 4 ohms:1600W
- Watts/Side @ 2 ohms:2000W
- Watts Bridged:3200W @ 8 ohms
- Inputs:2 x XLR, 2 x 1/4" TRS, 2 x Barrier Strips
- Outputs:2 x speakON, 2 x dual Binding Post
- Cooling System:Variable Speed Fan, back to front air flow
- Filters:30Hz, 50Hz
- Overload Protection:Full short circuit, open circuit, thermal, ultrasonic, RF protection
- Rack Spaces:3U
- Power Source:IEC C19 to NEMA 5-20 Plug included (20A outlet required)
- Height:5.25"
- Depth:15.9"
- Width:19"
- Weight:75 lbs.
- Manufacturer Part Number:RMX5050A
