The XTENDEXr DVI Extender transmits digital video and audio signals up to 300 feet using two CAT5e/6 cables. With the use of DVI-HDMI-xx-MM cables this video extender connects to a local DVI source and a remote unit that connects to an DVI display.
- Ideal solution for digital signage applications.
- ransmits an DVI signal over two CAT5e/6 cables.
- Supports HDTV resolutions to 1080i and computer resolutions to 1920x1080.
- Compliant with HDMI 1.3 and HDCP 1.3 standards.
- Compliant with DDWG DVI standard.
- Supports the DDC2B protocol.
- Only one power supply is necessary to power both the local and remote units.

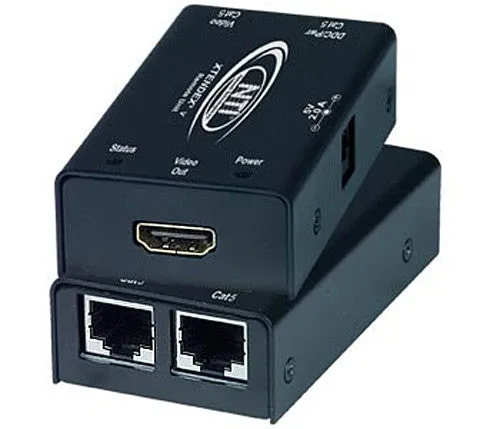

*Note: Image Shown with DVI-HDMI-3-MM attached(not included)

• Local Unit
  - One female HDMI-A port for source connection.
  - Not compatible with nVidia Quadro FX series video cards.
  - One female RJ45 port for sending high definition video/audio signals.
  - One female RJ45 port for sending DDC signal.
• Remote Unit
  - One female HDMI-A port for HDTV or computer display.
  - One female RJ45 port for receiving high definition video/audio signals.
  - One female RJ45 port for receiving DDC signal.
  - Signal type: HDMI 1.3a, HDCP 1.3 compliant.
  - Supports HDTV resolutions to 1080i and computer resolutions to 1920x1080.
• Power
  - Local unit: powered from remote unit through CAT5e/6 cable.
  - Remote unit: 100 or 240 VAC at 50 or 60 Hz via AC adapter (US AC adapter included).
  - Power consumption:
  - Local Unit: Powered from remote unit.
  - Remote Unit: 5W
• Cables
  - Use HDMI-xx-MM cable to connect an HDMI source or display.
  - Use DVI-HDMI-xx-MM cable to connect a DVI source or display.
  - Use CAT5e/6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
• Environmental
  - Operating temperature: 5°F to 130°F (-15°C to 55°C).
  - Storage temperature: -20°F to 140°F (-30°C to 60°C).
  - Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
• Dimensions
  - WxDxH (in): 1.8x3.3x0.9
• Regulatory Approvals
  - CE, FCC, RoHS
• MTBF
  - 20,000 hrs.
• Warranty
  - Two years
