Name: JBL C65P/T Full-Range Pendant Speaker (Pair, Black) - 5.25"
SKU: 750349

Product Details ＋

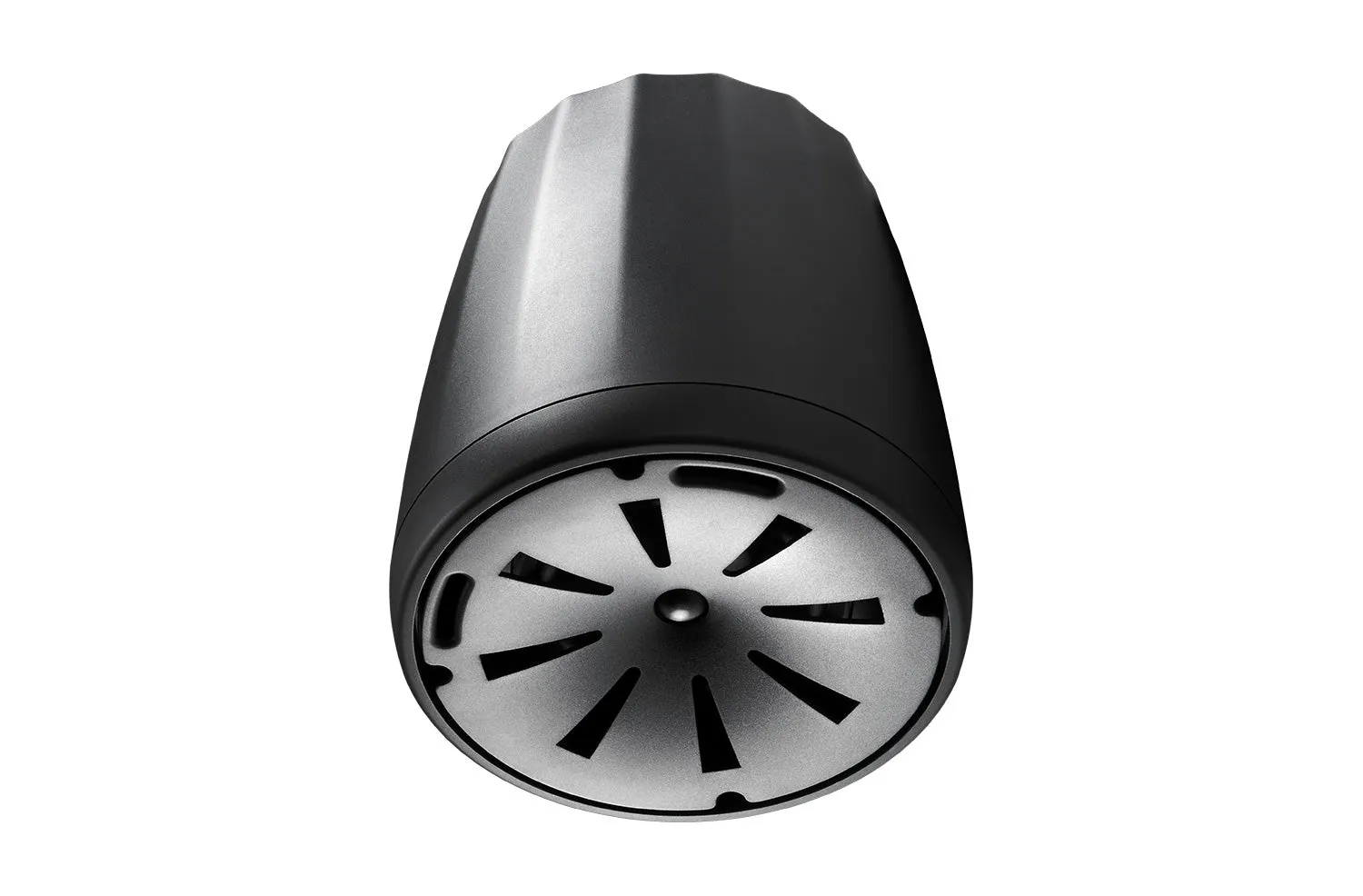

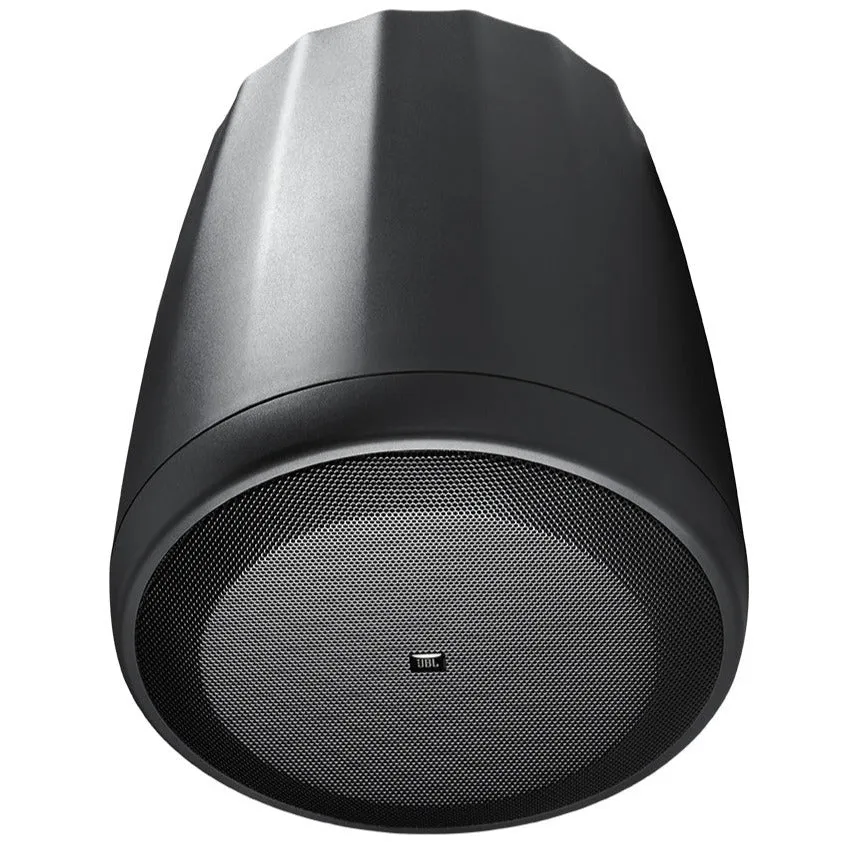

The Black Control 65P/T from JBL is a satellite pendant speaker that provides full-range audio in a compact design. It features a 5.25" woofer and a silk-dome tweeter that deliver high-quality audio with a wide frequency response, ideal for music or speech applications. A full grille protects the drivers and gives the speaker a sleek look.

The speaker has JBL's exclusive Radiation Boundary Integration (RBI) technology to provide 120° of consistent conical coverage. It has a 75W power handling capability and an 8 ohm impedance for compatibility with a variety of installation sound systems. It also has a 60W multi-tap transformer for professional installs.

Features

Compact Design
5.25" Woofer with Silk-Dome Tweeter
Radiation Boundary Integrator Technology
120° Conical Coverage
75W Power Handling
60W Multi-Tap Transformer
Full Grille

Specifications

Active/Passive	Passive
Number of Included Speakers	2
Speaker Configuration	Full-Range
Power Handling	150 W Program 300 W Peak 75 W RMS
Constant Voltage / Transformer Taps	100 V: 60 / 30 / 15 W 70 V: 60 / 30 / 15 / 7.5 W

Drivers

HF Driver	0.75" / 20 mm Soft-Dome
LF Driver	5.25" / 130 mm Polypropylene-Coated Paper
LF Voice Coil	1" / 25 mm
Magnet	HF: Neodymium

Performance

Frequency Range	78 Hz to 18 kHz ±3 dB
Frequency Response	55 Hz to 20 kHz -10 dB
Maximum SPL	105 dB (Continuous) 111 dB (Peak)
Sensitivity	86 dB
Coverage Angle	120° H x 120° V
Directivity	5.3 (Directivity/Q Factor) 7.2 dB (Directivity Index)
Transformer Insertion Loss	0.5 dB at 7.5 W 0.5 dB at 15 W 0.6 dB at 30 W 0.7 dB at 60 W
