Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Clamping Voltage | 500 V |
| Current, Surge | 25 kA |
| Dimensions | 2" x 2" x 1.5" |
| For Use With | Industrial Equipment |
| Phase | 2 |
| Supply Voltage | 120 ; 240 VAC |
| Termination | Leadwires |
| Type | Single-Phase |
| Voltage, Operating | 120 ; 240 V |
| Voltage, RMS | 175 VRMS |
| Wire Size | 12 AWG |
Overview

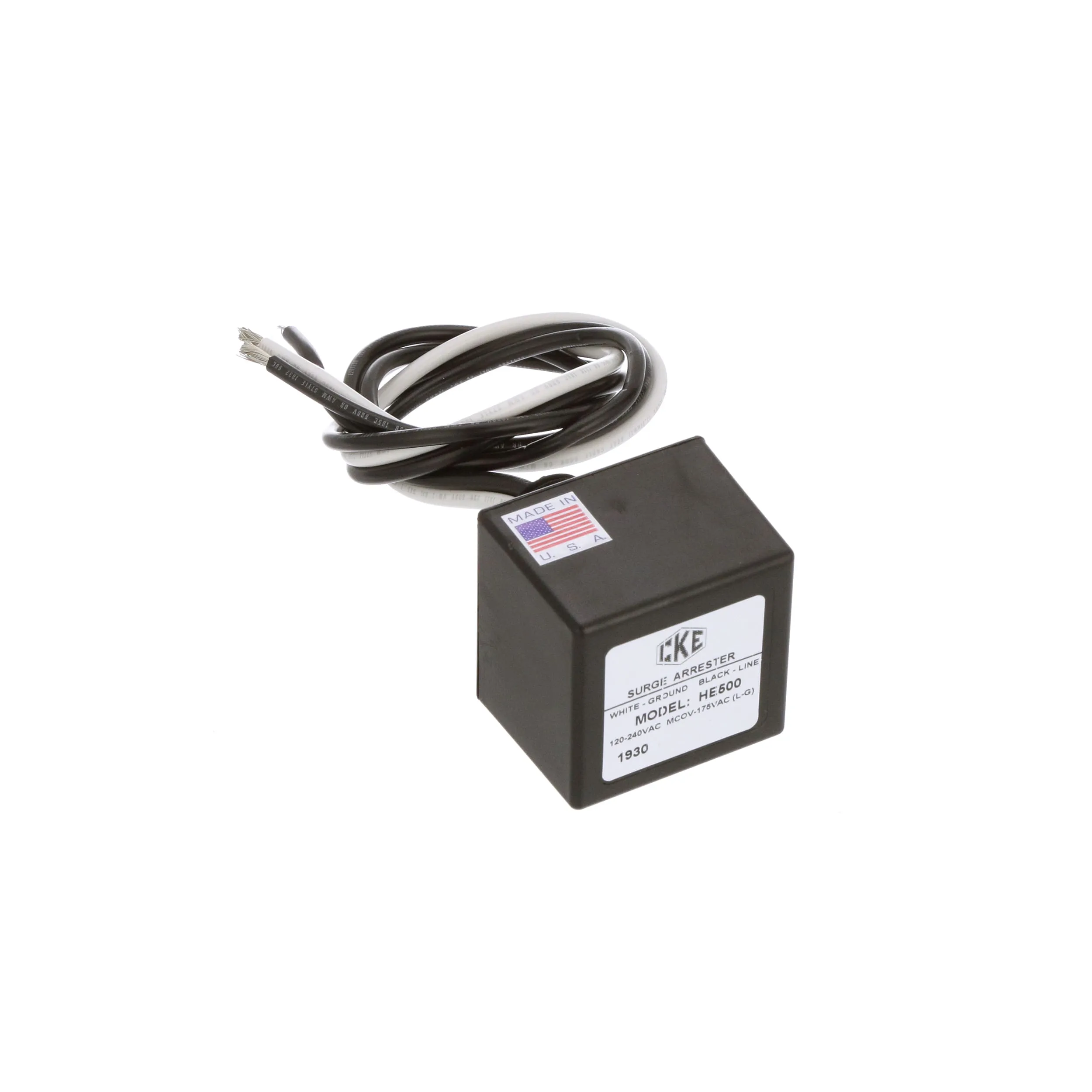

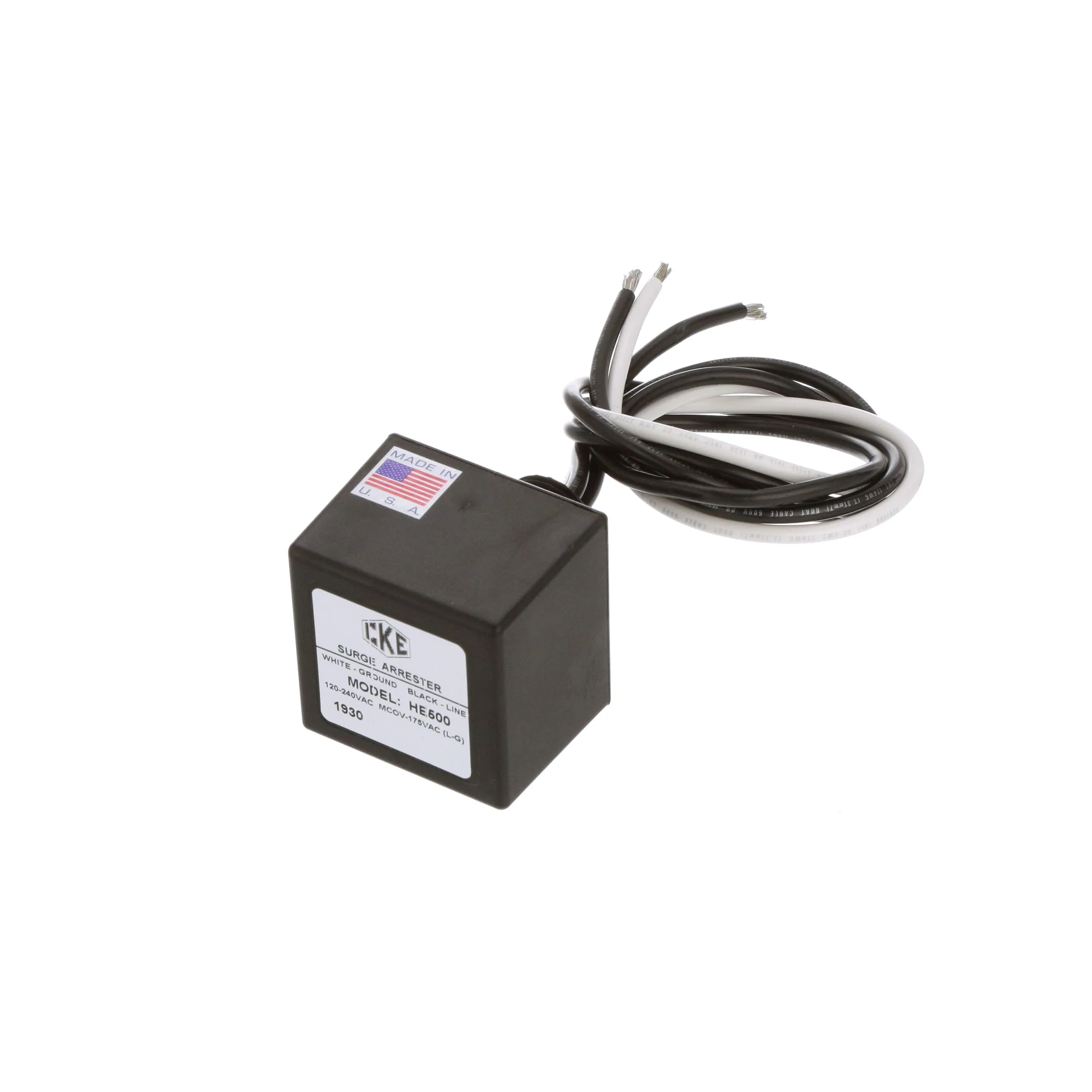

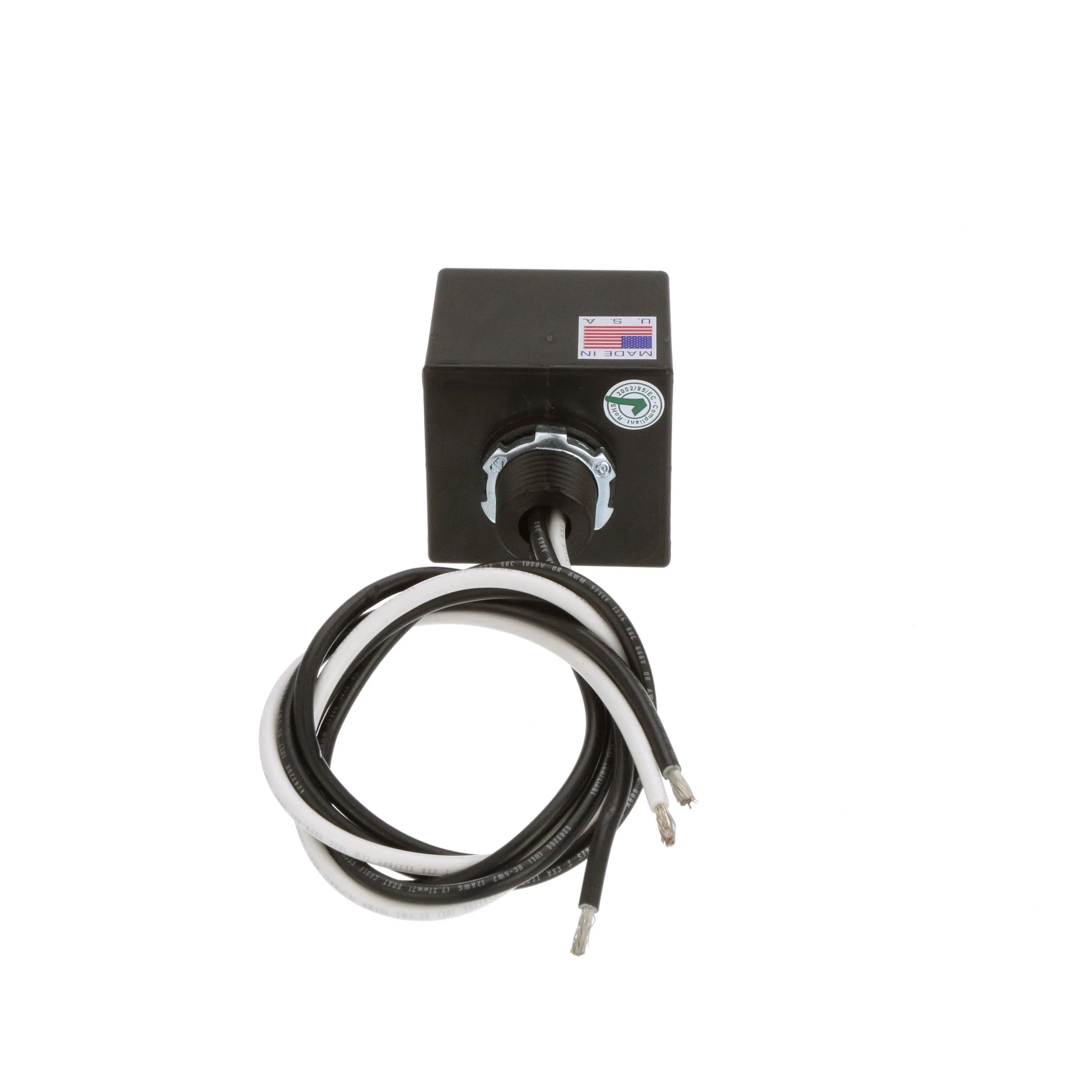

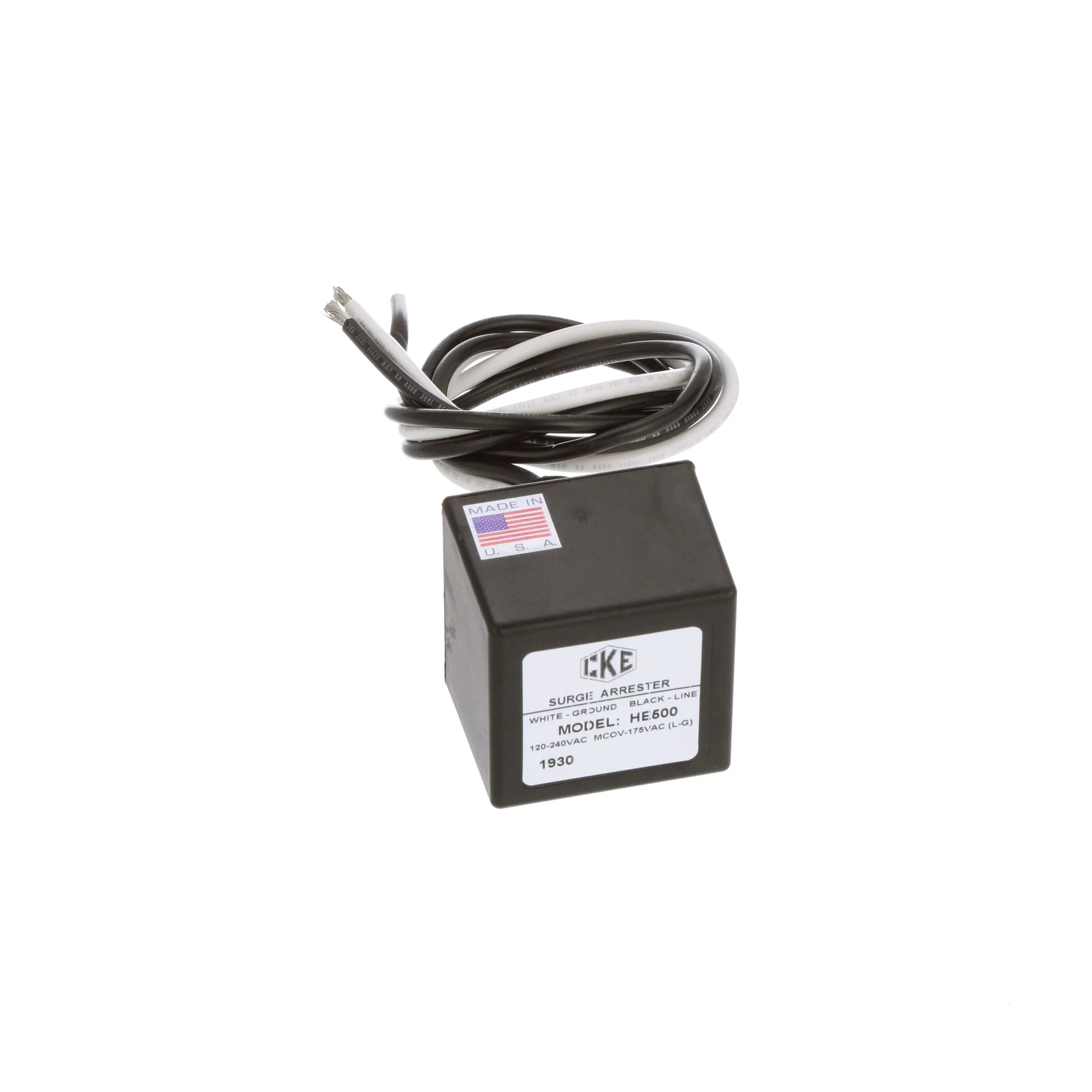

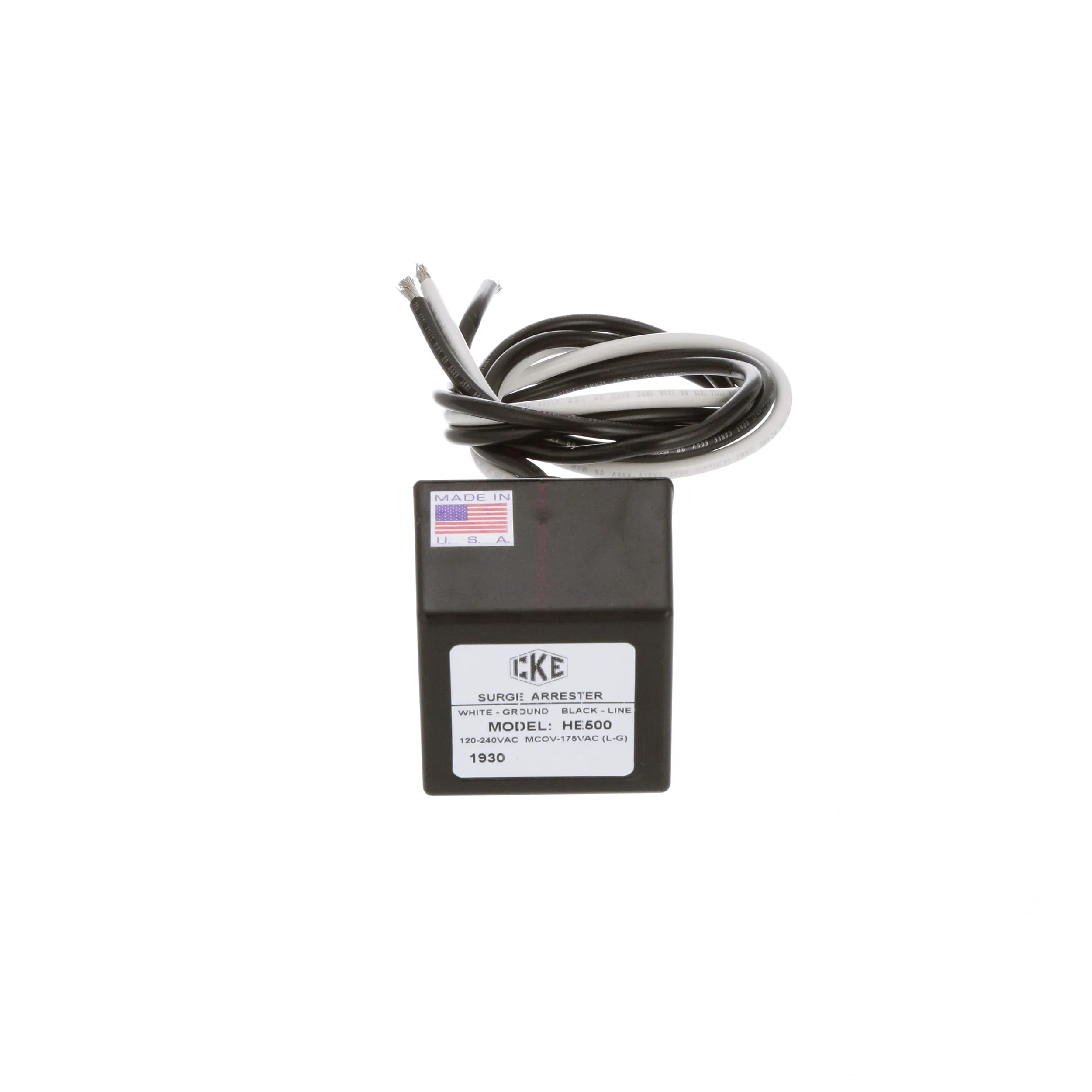

All ratings shown above are with 1" lead wires; please refer to the data sheet for complete specifications and wire configuration. Molded plastic case that mounts with threaded 1⁄2 inch conduit nipple with locknut; uses 18 inch stranded 12 AWG color coded leads.
