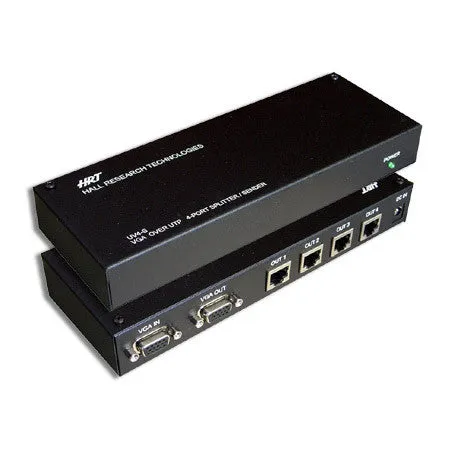

The Model UV4-S is a 4-channel video splitter that can send a VGA or component video signal to multiple displays on Cat-5 cable. This unit features a standard HD15 VGA connector for the input and has 4 RJ45 connectors for the outputs. It also provides an additional VGA output for connection to a local monitor.The UV4-S can drive Cat-5 cables of lengths up to 500 feet. At the remote (receiving) end of the Cat-5 cables a Model UV1-R is required to convert the UTP signal back to VGA for connection to a monitor.In most setups only one power supply is necessary for the entire system. The UV4-S Sender/Splitter comes with a power supply that is capable of powering itself and all the UV1-R receivers. For Cat-5 runs of over 330 feet, the receivers may need their own additional supplies that must be ordered separately (HRT model # 511-GS569). Made in the USA.

• Support for local monitor at transmitter
• Multiple Cat-5 outputs
• Transmit video and phantom power on one cable
• Eliminates the need for bulky, expensive and hard to build multi-coaxial cables for High-Resolution A/V extension
• Amplifies the signal for clean and crisp transmission
• Differential signaling eliminates ground loops and noise
• Handles resolutions up to 1920x1440 at 60Hz
• Rugged, Reliable, Compact size
• Drive standard CAT5 cables to 500 feet for (VGA and Component Video) or to 2000 feet for (Composite Video Audio)
• Works with HRT-UV1R Receivers
