The ETS InstaSnake PA200 Series are passive units for sending up to four audio signals over a single run of CAT5, 5E or 6 cables. Please order send and receive units separately!

Features

These extremely compact units, together with a roll of CAT 5 cable, use little storage space, are light to transport and can solve dozens of live and/or recording real world sound problems. These passive (no power required) units are bi-directional and can be input directly into analog or digital consoles.

Designed to the highest professional standards the InstaSnake has a wide, flat frequency response, low THD and residual noise.

You can mix and match Mic/Line, Line or AES/EBU configurations making the InstaSnake a versatile high quality solution at very affordable prices.

The InstaSnake has been factory tested to 1900' over CAT5 using low Z dynamic microphones. Phantom power tested to 850' over shielded cable. PA202P with (4) 18" pigtails lets you access the mixer without the need for an additional 4 microphone cables. PA203 is configured for 3 sends and 1 return.

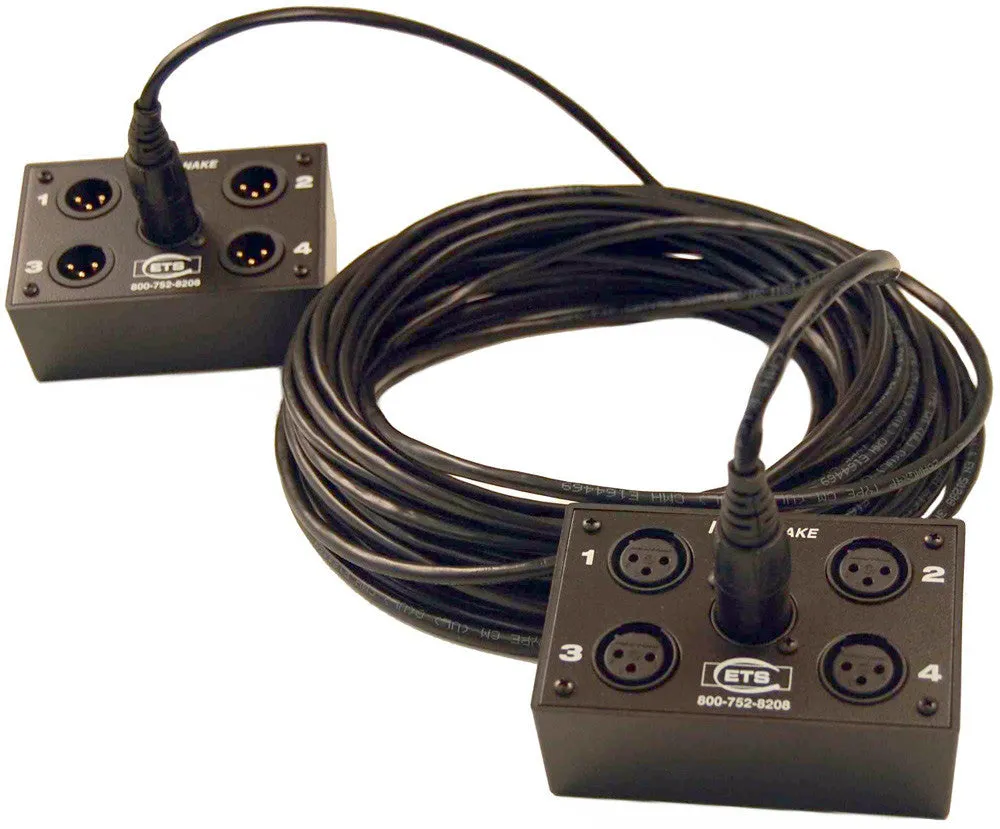

Cable not included.Typical ETS-PA202M / ETS-PA202F configuration Shown.
