Blackmagic ATEM 1 M/E Constellation HD



ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‚ÄëSDI inputs and 6 independent 3G‚ÄëSDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

Connections

Total Video Inputs: 10

Total Video Outputs: 6

SDI Rates: 1.5G, 3G

Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.

Total Audio Outputs: 1 x 5 pin XLR Talkback.

SDI Audio Inputs: 2 Ch embedded audio on all SDI inputs.

SDI Audio Outputs: 2 Ch embedded audio on all SDI outputs.

Timecode Connections: None

Reference Input: Tri-Sync or Black Burst.

Video Input Re-Sync: On all 10 inputs.

Frame Rate and Format Converters: On all 10 inputs.

SDI Aux Outputs: Any of the 6 SDI outputs.

SDI Preview Outputs: Any of the 6 SDI outputs.

SDI Program Outputs: Any of the 6 SDI outputs.

Down Converted SDI Program Output: None

Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views: 1 x 3G-SDI

Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator: Yes

Talkback: RJ45 for 3rd party talkback systems.

Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet: Supports 10/100/1000 BASE-T.

Computer Interface: 1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)

Standards

SD Video Standards: None

HD Video Standards: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.

Video Sampling: 4:2:2

Color Precision: 10-bit.

Color Space: REC 709

SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

Multi View Monitoring

Multi View Monitoring: 1 x multi view configurable to 16, 13, 10, 7 or 4 up view. Includes monitoring of Program, Preview, Inputs, Media Players, DSK, Clean Feed with optional labels and audio meters.

Multi View Video Standard: HD

Display Minimum Resolution: 1366 x 768

Media Player

Media Players: 2

Channels: Fill and key for each media player.

Media Pool Still Image Capacity: 20

Media Pool Clip Capacity: 2 x up to 1080p60.

Media Player Clip Length in 720 HD: 400 frames.

Media Player Clip Length in 1080 HD: 200 frames.

Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format: TGA Sequence.

Media Pool Audio File Format: WAV, MP3 and AIFF.

Display

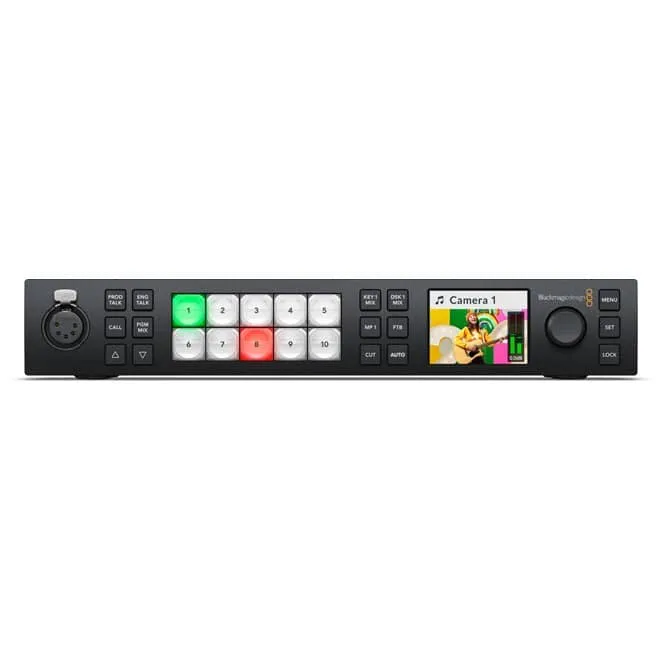

Front panel: Built in 2.2 inch LCD monitor for video, 10 LED buttons for setup and emergency switching, 4 source buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

Processing

Processing Delay:

Audio Mixer: 28 Channel mixer, Selectable On/Off/Audio-Follow-Video., Level and Peak metering., Master gain control., 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion: None

Operating Systems
Mac 11.1 Big Sur, Mac 12.0 Monterey or later, Windows 10 and 11.

Power Requirements

Power Supply: 1 x Internal 100 - 240 AC.

Power Usage: 36W

Physical Installation

Physical Installation: 2/3 rack unit width, 1 rack unit height.

Optional Accessories: Teranex Mini Rack Shelf

Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)

Storage Temperature: -20° to 60° C (-4° to 140° F)

Relative Humidity: 0% to 90% non-condensing

Warranty
12 Month Limited Manufacturer's Warranty.
