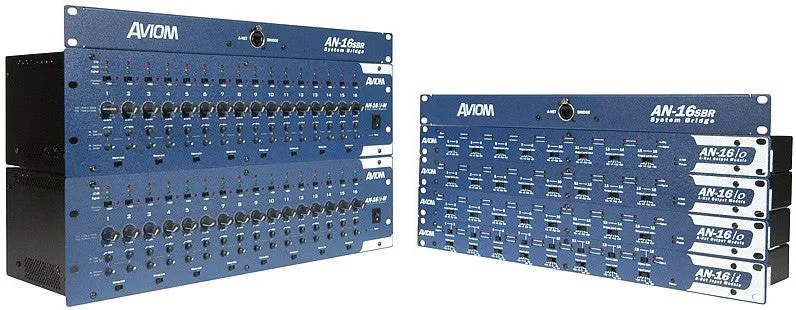

Aviom DS32 32x16 Digital Snake
The DS32 Digital Snake provides 32 mic/line inputs on stage and 16 line-level returns from the FOH position. All audio data travels over a single Cat-5e cable (up to 500ft/150m)between stage and FOH by using the included AN-16SBR System Bridges.

Each input channel on the AN-16/i-M contains a three-segment level meter, a continuously variable gain knob, a phase reverse switch, 48-volt phantom power, and a rumble filter with an 85Hz rolloff.

The 16 balanced outputs on the AN-16/o v.4 are provided via DB25 multipin connectors. The analog outputs can be set (per channel pair) to 24dBu, 18dBu, 4dBu, or mic level.

The DS32 is an ideal solution for mid-sized ensembles and facilities.

• 2 AN-16/i-M Mic Input Modules
• 1 AN-16/i Input Module
• 3 AN-16/o v.4 Output Modules
• 1pr AN-16SBR System Bridges
