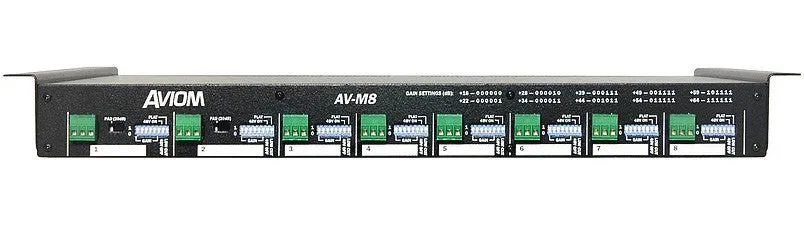

Aviom AV-M8 8-Channel Mic-Level Input Module
The AV-M8 Mic Input Module provides eight mic-level inputs to a Pro16r system. Two channels also include a 20dB switchable pad for use with line-level input sources. Eight channels of digital audio may also be input via ADATr, from a second AV-M8 module. The unit may be mounted in a rack or to a table or podium, using the reversible mounting flanges or detachable rack ears.

The AV-M8 is compatible with all Pro16 Series products including Personal Mixers, A-Net distributors, and output modules.

Input Connections
Analog audio is input via eight latching 5.0mm Euroblock connectors. Each analog input channel features configuration DIP switches for individually selectable gain settings, 48V phantom power, and low cut filter.

Analog input channels are routed to Channels 1-8 in the A-Netr stream, while channels input via the ADAT link become A-Net Channels 9-16. Stereo linking for all eight A-Net channel pairs is supported through an eight-position rear-panel DIP switch.

Network Connections
A-Net connections include A-Net Out and A-Net Expansion, using locking Neutrik EtherCon connectors. The A-Net Expansion jack allows up to 32 channels to be carried on a single Cat-5e cable, in either 32x0 or 16x16 configurations. Larger systems (up to 64 channels on a cable) can be built using Aviom's AN-16SBR System Bridge. Pro16 A-Net supports Cat-5e cable runs up to 500ft/150m between devices. For installations requiring longer cable runs, single- or multi-mode fiber optics may be utilized, using certain standard third- party media converters.

• Converts eight analog audio channels to a Pro16® A-Net digital stream
• ADAT® In and ADAT Out for cascading two AV-M8 modules
• Gain, 48V phantom power, and low cut filter controls per channel
• 20dB switchable pad (Channels 1 and 2)
• Stereo Link per channel pair
• Reversible mounting flanges and rack ears
