Come demo in store
We have the Arran RCA, Phono, Coax, XLR and speaker cable with Grun available to demo in store. We are an ATLAS approved retailer with the experience / knowledge and investment to assist you your speaker cable purchase.

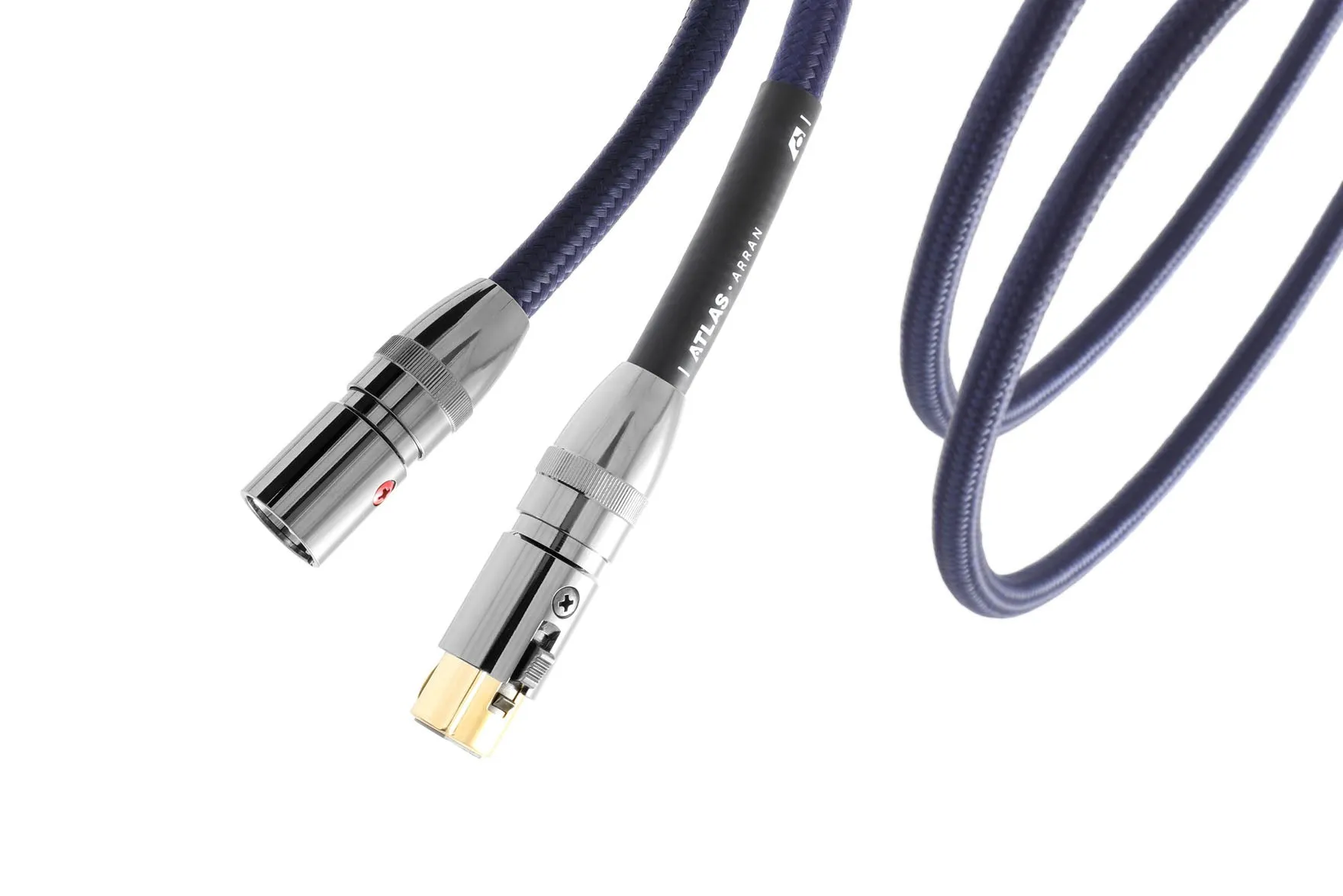

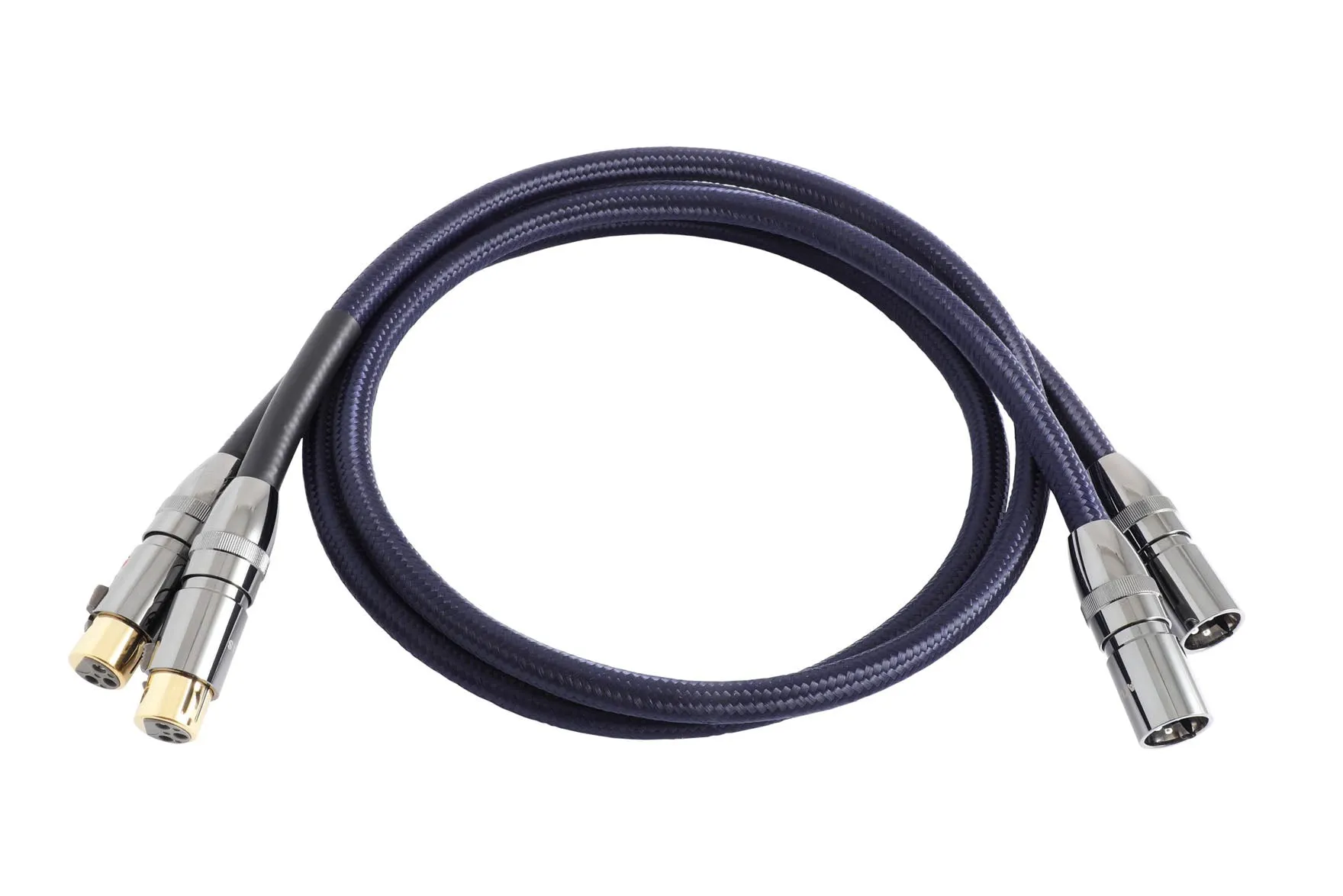

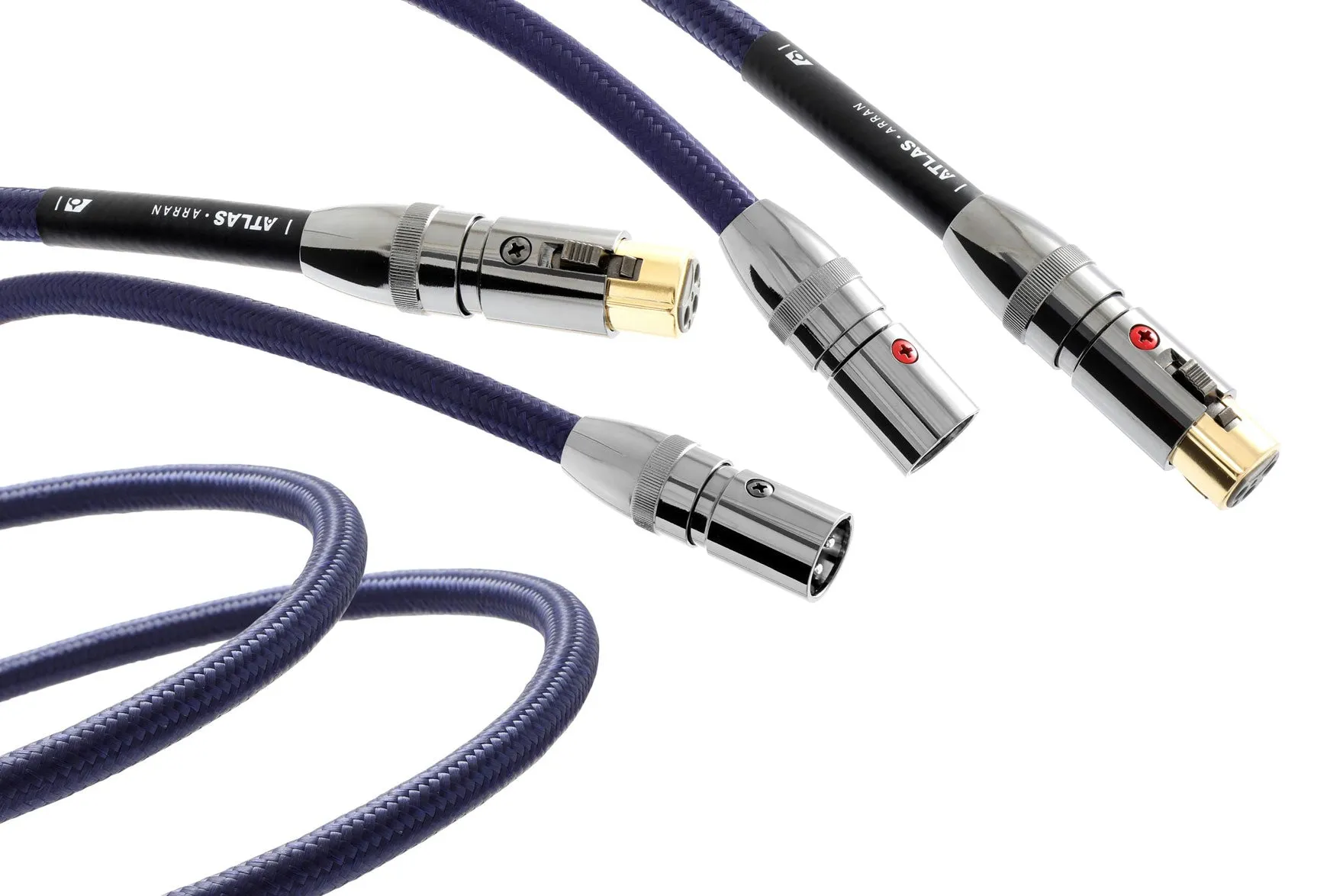

A technically and sonically superior wide-bandwidth interconnect designed to maximise the performance of the very finest audio systems which offer the increasingly popular option of XLR connection. Arran OCC XLR incorporates our precision dd (dual-drain) system.
The Arran OCC XLR features the highest quality ‘6N’ (99.99997% purity) elongated crystal copper manufactured using the OCC (Ohno Continuous Casting) process.
The cable utilises a pair of conductors, each made up of six solid OCC strands surrounding a seventh central wire, tension wrapped in a multi-layer microporous Teflon dielectric. A sophisticated ‘dd’ (dual-drain) screen configuration with a copper shielding braid ensures minimal RF interference and noise susceptibility.
Termination is with our cold-weld aluminium alloy ‘dark Chrome’ XLR connectors, here with silver-plated OCC copper pins. In a cold-weld (solder-free) connection, the metal of the connector plug and the wire are squeezed together under a calibrated pressure to form a robust, consistent, air-tight metal to metal contact with no deformation of the cable dielectric. The result is a smooth, uninterrupted signal path which behaves as one continuous entity.
Standard or Luxe finish options are available.
Construction | Twin Multi-core dd (dual drain) |
Material | OCC Copper |
Dielectric | Microporous PTFE |
Screen | Braid Mylar™, 100% |
Capacitance | 71.17 pF/m |
Inductance | 0.332 µH/m |
Resistance | 0.0197 Ohm/m |
Outside Diameter | 9.8 mm |
